DNA Conformers

David Marcey
© 2006

I. Introduction
II. Table of Parameters
III. References

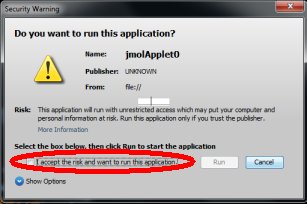

If prompted, allow your browser to view blocked content. The OMM now uses the Signed Jmol Applet. No files from this site can damage your computer. Just check the appropriate box and then click run.

Use the scrollbar to the right to scroll through the text of this exhibit.

To reset the molecules in this exhibit, use the refresh button of your browser to reload the page.

If you resize your browser window, simply refresh the page in order to restore proper viewing.

I. Introduction

To the left are shown the three primary conformers of double stranded DNA, including A-, Z-, and B-DNA (the backbones are indicated by purple traces). Although B-DNA is the primary in vivo conformation, DNA-RNA hybrid molecules adopt the A conformation in cells, and Z-DNA may arise in GC rich stretches of chromosomal DNA. Whereas A- and B-DNA are right handed helices, Z-DNA is left handed. A-DNA forms under non-physiological conditions when B-DNA is dehydrated.

There are large differences in the depths of the grooves in the three conformers. Whereas B-DNA has major and minor grooves of similar depths, A-DNA has a cavernous major groove and a minor groove that is quite shallow. Z-DNA has the opposite arrangement, with a deep minor groove and a major groove into which the bases are extruded. In B-DNA, the bases are nearly perpendicular to the helical axis, which runs through the center of each base pair. In A-DNA, the helical axis runs through the major groove, the base pairs being pushed toward the surface of the minor groove. The A-DNA bases are tilted significantly (13o - 19o) with respect to the helical axis.

return to beginning of exhibit

II. Table of Conformer Parameters

Parameters of A-, B-, and Z-DNA Double Helices
(after Dickerson, et al., 1982)

ble Helices (after Dickerson, et al., 1982)
Property A-Form B-Form Z-Form
Helical sense Right-handed Right-handed Left-handed
Repeating helix unit 1 base pair 1 base pair 2 base pairs
Rotation/base pair (degrees) 33.6 35.9 +/- 4.2 -60/2
Mean base pairs/turn 10.7 10.0 +/- 1.2 12
Inclination of base normals to helix axis (degrees) +19 -1.2 +/- 4.1 -9
Rise/base pair along helix axis (Å) 2.3 3.32 +/- 0.19 3.8
Pitch/turn of helix (Å) 24.6 33.2 45.6
Mean propeller twist (degrees) +18 +16 +/- 7 ~0
Glycosyl angle conformation anti anti anti at C, syn at G
Sugar pucker conformation C3'-endo O1'-endo to C2'-endo C2'-endo at C, C2'-exo to C1'-exo at G

return to beginning of exhibit

III. References

Dickerson, R.E., et al. (1982) The Anatomy of A-, B-, and Z-DNA. Science 216: 475-485.

Wang, A. H.-J., et al. (1979) Molecular Structure of a Left-handed Double Helical DNA Fragment at Atomic Resolution. Nature 282: 680-686.
